音圈线材性能一览:

IEC European Wire Types
IEC European Wire Types
ELEKTRISOLA - Product-Name	Polysol 155	Polysol 180	Estersol 180	Amidester 200	Amidester210	ML240
ELEKTRISOLA - Product-Code	P155	P180	E180	A200	AI210

General
Description	mod. Polyurethane	mod. Polyurethane	Polyesterimide	Theic-mod. Polyesterimide	A200 + Polyamidimide	aromatic Polyimide
Standards:
IEC (including the following norms)	IEC 60317-20, IEC 60317-4	IEC 60317-51, IEC 60317-20	IEC 60317-23, IEC 60317-3/8	IEC 60317-8	IEC 60317-13	IEC 60317-46, 60317-7
NEMA (including the following norms)	MW 79, MW 2, MW 75	MW 82, MW79, MW75	MW 77, MW 5, MW 26	MW 74, MW 5, MW 30	MW35, MW73	MW 16
UL-approval	yes	yes	yes	yes	yes	no, JW 1177
Diameters available	0.010 - 0.50 mm	0.010 - 0.50 mm	0.010 - 0.50 mm	0.010 - 0.50 mm	0.015 - 0.50 mm	0.02 - 0.11 mm, ex USA
Properties	Very good solderability and high thermal properties.	Good solderability at 370ºC and elevated thermal values	Solderable at high temperatures, very good thermal and good chemical resistance.	High thermal properties and good chemical resistance.	Very high thermal properties and high mechanical resistance	Excellent thermal properties, excellent chemical and high radiation resistance.
Applications	Used in small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, fly-back transformers, magnetic heads, instruments.	Used for automotive coils as relais and ignition coils, in transformers and in solenoids	Used in small motors, small transformers, automotive coils.	Used in motors, small motors, transformers.	Used in motors	Used in military and space applications.

TECHNICAL VALUES
1. Thermal Values
Temperature index 20,000 h acc. to IEC 60172	158ºC	192ºC	195ºC	210ºC	212ºC	245ºC
Cut through temperature min ºC acc. to IEC 60851.6.4	>/= 200ºC	>/= 230ºC	>/= 265ºC	>/= 300ºC	>/= 320ºC	>/= 400ºC
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1	225/230ºC	260/265ºC	315/325ºC	350/360ºC	365/380ºC	450ºC/n.a.
Heat Shock min ºC acc. to IEC 60851.6.3	>/= 175ºC	>/= 200ºC	>/= 200ºC	>/= 200ºC	>/= 220ºC	>/= 240ºC
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1	190/180ºC	210/200ºC	260/250ºC	230/220ºC	250/240ºC	300ºC/n.a.

2. Electrical values
Low voltage continuity max. acc. to IEC 60 851.5.1 for 0.05mm/0.25mm	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25
Elektrisola typical values for 0.05mm/0.25mm, Grade 1	0/0	0/0	0/0	0/0	0/0	0/n.a.
High voltage continuity max. acc. to IEC 60851.5.2 for 0.05mm/0.25mm	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1	>=2/1	>=2/1	>=2/1	>=2/1	>=2/1	>=2/n.a.
Breakdown voltage (at 20o C, 35% humidity)/Elektrisola typical values to cylindrical test 0.05mm/0.25mm, Grade 1	240/180 V/micron m	240/180 V/micron m	240/180 V/micron m	240/180 V/micron m	230/170 V/micron m	240/n.a. V/micron m
Decrease of breakdown voltage in % at elevated temperature Elektrisola typical value for 0.05 mm, Grade 1, in % at ºC Elektrisola typical value for 0.25 mm, Grade 1, in % at ºC	25% at 155ºC	20% at 180ºC	20% at 180ºC	20% at 200ºC	20% at 205ºC	15% at 220ºC

3. Mechanical values
Elongation min. acc. to IEC 60851.3.3 for 0.05 mm/0.25 mm, Grade 1	>/= 10% / 22%	>/= 10% / 22%	>/= 10% / 22%	>/= 10% / 22%	>/= 10% / 22%	>/= 10% / 22%
Elektrisola typical values for	23% / 40%	23% / 40%	23% / 40%	23% / 40%	23% / 40%	23% / 40%
0.05 mm/0.25 mm, Grade 1
Tensile strength min
Elektrisola typical values for	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN
0.05 mm/0.25 mm, Grade 1

4. Chemical
Standard solution acc. to IEC 60851.4.3
Pencil Hardness with/without treatment	4H/4H	4H/4H	4H/4H	4H/4H	4H/4H	6H/6H
Decrease of breakdown voltage in % after treatment	5%	0%	0%	5%	0%	0%
General statements about chemical compatibility are not possible due to the high number of influencing factors such as winding, impregnation molding and cleaning materials etc.

5. Solderability
acc. to IEC 60851.4.5, max. seconds at ºC for 0.05/0.25mm	2s/390ºC / 3s/390ºC	2s/390ºC / 3s/390ºC	2s/470ºC / 3s/470ºC	--	--	--

Elektrisola typical values acc. to IEC 60851.4.5.1.1 + -4.5.1.3	0,3s/370ºC / 0,2s/390ºC	1.8s/370ºC / 0.7s/390ºC	1.8s/470ºC	--	--	--
for 0.05 mm, Grade 1, seconds at ºC for 0.25 mm, Grade 1, seconds at ºC	0,7s/370ºC / 0,5s/390ºC	2.8s/370ºC / 1.1s/390ºC	2.8s/470ºC	--	--	--

Elektrisola Selfbonding Wire
Elektrisola Selfbonding Wire
ELEKTRISOLA - Produkt-Name	Butybond	Butybond alcohol 155	Solabond 155	Solabond Poly 180	Solabond 180	Solabond 200
ELEKTRISOLA - Produkt-Code	B155	Ba155	S155	SP180	S180	S200

General
Description Base coat Bondcoat	mod. Polyurethane Polyvinylbutyral	mod. Polyurethane Polyvinylbutyral	mod. Polyurethane Polyamide	mod. Polyurethane Polyamide	Polyesterimide Polyamide	Theic-mod. Polyesterimide Polyamide
Standards:
IEC (including the following norms)	IEC 60317-35, IEC 60317-2	IEC 60317-35, IEC 60317-2	IEC 60317-35, IEC 60317-2	IEC 60317-35, IEC 60317-2	IEC 60317-36	IEC 60317-37
Diameters available	0.010 - 0.50 mm	0.010 - 0.20 mm	0.010 - 0.50 mm	0.010 - 0.50 mm	0.010 - 0.50 mm	0.020 - 0.50 mm

TECHNICAL VALUES
1. Thermal Values of base coat
Temperature index 20.000 h acc. to IEC 60172	158ºC	158ºC	158ºC	192ºC	195ºC	210ºC
Cut through temperature min. °C acc. to IEC 60851.6.4	>/= 200ºC	>/= 200ºC	>/= 200ºC	>/= 200ºC	>/= 265ºC	>/= 300ºC
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1B	225/230ºC	225/230ºC	225/230ºC	260/265ºC	315/325ºC	350/360ºC
Heat shock min. °C acc. to IEC 60851.6.3	>/= 175ºC	>/= 175ºC	>/= 175ºC	>/= 175ºC	>/= 200ºC	>/= 200ºC
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1B	190/180ºC	190/180ºC	190/180ºC	210/200ºC	260/250ºC	230/220ºC

2. Electrical Values
Low voltage continuity max. acc. to IEC 60851.5.1 for 0.05 mm/0.25 mm	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1B	0/0	0/0	0/0	0/0	0/0	0/0
High voltage continuity max. acc. to IEC 60851.5.2 for 0.05 mm/0.25 mm	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25	</= 60/25
Elektrisola typical values for 0.05 mm/0.25 mm, Grade 1B	2/1	2/1	2/1	2/1	2/1	2/1
Pinholes acc. to JIS C 3003.6, with 0% / 3% elongation	not applicable	not applicable	not applicable	pass	pass	pass
Breakdown voltage acc. to IEC 60851.5.4 (at 20°C, 35% humidity) Elektrisola typical values acc. to cylinder test for 0.05 mm/0.25 mm, Grade 1B	170/130 V/micron m	170/130 V/micron m	170/130 V/micron m	170/130 V/micron m	170/130 V/micron m	170/130 V/micron m
Elektrisola typical values
3. Mechanical Values
Elongation min. acc. to IEC 60851.3.3 for 0.05 mm/0.25 mm, Grade 1B	>/= 14% / 25%	>/= 14% / 25%	>/= 14% / 25%	>/= 14% / 25%	>/= 14% / 25%	>/= 14% / 25%
Elektrisola typical values for	23% / 40%	23% / 40%	23% / 40%	23% / 40%	23% / 40%	23% / 40%
0.05 mm/0.25 mm, Grade 1B
Tensile strength
Elektrisola typical values for	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN	57/1370 cN
0.05 mm/0.25 mm, Grade 1B

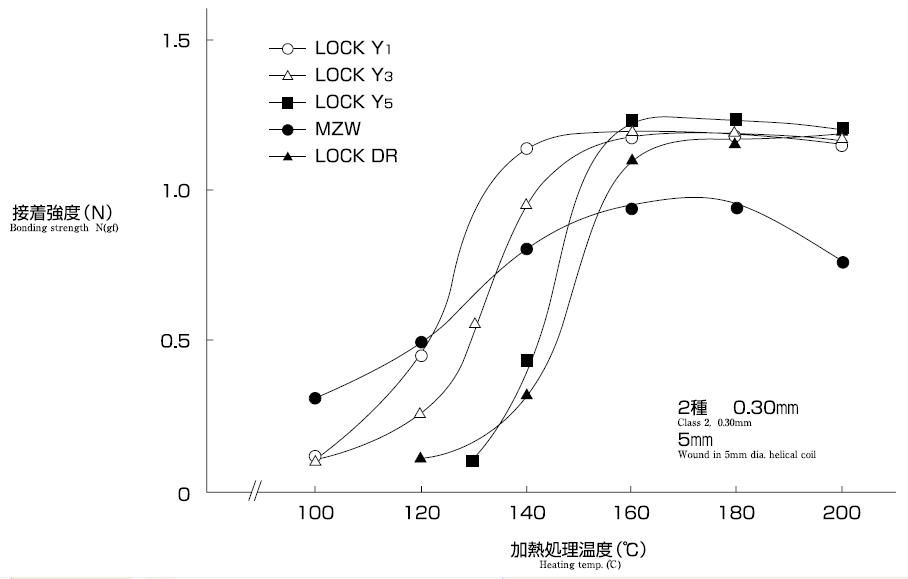

4. Bonding
Method
Hot air bonding	0.010 - 0.14 mm	0.010 - 0.14 mm	0.010 - 0.14 mm	0.010 - 0.14 mm	0.010 - 0.14 mm	0.020 - 0.14 mm
Oven bonding	0.10 - 0.50 mm	0.10 - 0.20 mm	0.10 - 0.50 mm	0.10 - 0.50 mm	0.10 - 0.50 mm	0.10 - 0.50 mm
Resistance bonding	0.10 - 0.50 mm	0.10 - 0.20 mm	0.10 - 0.50 mm	0.10 - 0.50 mm	0.10 - 0.50 mm	0.10 - 0.50 mm
Solvent bonding Recommended solvent	limited Methanol/Ethanol	suitable Methanol/Ethanol	suitable Methanol/Ethanol	suitable Methanol/Ethanol	limited Methanol/Ethanol	limited Methanol/Ethanol
Recommended bonding temperature	110 - 140°C	110 - 140°C	140 - 170°C	150 - 190°C	160 - 190°C	200 - 230°C
Resoftening temperature acc. to IEC 60851.3.3.7.1.2.3 for 0.25 mm	>/- 100°C	>/- 100°C	>/- 155°C	>/- 170°C	>/- 180°C	>/- 200°C
Stockability at 25°C/60% relative humidity in months	</-6	</-6	</-3	</-5	</-5	</-5

5. Solderability
acc. to IEC 60851.4.5 max. seconds at °C for 0.05 mm/0.25 mm, Grade 1B	2s/390ºC / 2s/390ºC	2s/390ºC / 2s/390ºC	2s/390ºC / 3s/390ºC	2s/390ºC / 3s/390ºC	2s/470ºC / 3s/470ºC	--
Elektrisola typical values acc. to IEC 60851.4.5.1.3 for 0.05 mm, Grade 1B, seconds at °C for 0.25 mm, Grade 1B, seconds at °C	1.3s/370ºC / 0.8s/390ºC 2.8s/370ºC / 1.4s/390ºC	1.3s/370ºC / 0.8s/390ºC 2.8s/370ºC / 1.4s/390ºC	0.5s/370ºC / 0.4s/390ºC 1.2s/370ºC / 0.7s/390ºC	1.0s/370ºC / 0.7s/390ºC 2.8s/370ºC / 1.6s/390ºC	1.9s/470ºC 3.4s/470ºC	--

Properties	Easy bonding, low sensititvity against humidity, low resoftening temperature.	Easy bonding, low sensitivity against humidity, low resoftening temperature, especially for solvent bonding.	Higher resoftening temperature, hygroscopic, alcohol bonding possible.	Higher resoftening temperature, not hygroscopic, alcohol bonding possible.	Very good thermal properties of base coat, high resoftening temperature, slightly hygroscopic.	Good thermal properties of base coat, high resoftening temperature, slightly hagroscopic.
Application	For stepper motors for quartz watches, instruments, voice coils, sensors, transponders.	For stepper motors for quartz watches, instruments, voice coils, sensors.	For instrument coils, voice coils, loudspeakers, small motors, sensors.	For instrument coils, loudspeakers, small motors, sensors, transponders.	For small motors, loudspeakers.	For small motors, loudspeakers.

Nom.

Bare Wire

Resistance

Outer Diameter

Approx. Length

Max.

Diameter

Tolerance

per meter at 20 ° C

of 1 kg of Wire

Winding

Nom.

Grade 1

Grade 2

Grade 3

Tension

Diameter

nom.

min.

max.

min.

max.

min.

max.

min.

max.

Grade1

Grade 2

Grade 3

W / m

0.012

False False Center

151.14

136.03

166.26

0.014

0.016

0.017

0.018

0.019

0.021

913.6

847.9

782.9

2.0

0.012

0.014

111.04

99.94

122.15

0.016

0.018

0.019

0.020

0.021

0.023

679.4

638.1

596.8

2.5

0.014

0.016

85.02

76.52

93.52

0.018

0.020

0.021

0.022

0.023

0.025

524.9

497.3

469.5

3.2

0.016

0.018

67.18

60.46

73.89

0.020

0.022

0.023

0.024

0.025

0.027

417.6

398.3

378.8

3.9

0.018

0.019

60.29

54.26

66.32

0.021

0.023

0.024

0.026

0.027

0.029

375.9

356.2

336.3

4.3

0.019

0.020

54.41

48.97

59.85

0.022

0.024

0.025

0.027

0.028

0.030

340.1

323.2

306.2

4.7

0.020

0.021

49.35

44.42

54.29

0.023

0.026

0.027

0.028

0.029

0.031

306.8

292.2

279.9

5.1

0.021

0.022

44.97

40.47

49.47

0.024

0.027

0.028

0.030

0.031

0.033

280.2

265.4

252.6

6.0

0.022

0.023

41.14

37.03

45.26

0.025

0.028

0.029

0.031

0.032

0.035

257.0

244.0

231.0

6.2

0.023

0.024

37.79

34.01

41.57

0.026

0.029

0.030

0.032

0.033

0.036

236.5

225.1

213.6

6.5

0.024

0.025

34.82

31.34

38.31

0.028

0.031

0.032

0.034

0.035

0.038

215.5

205.4

195.2

7.0

0.025

0.027

29.86

26.87

32.84

0.030

0.033

0.034

0.036

0.037

0.041

185.6

177.6

168.3

8.0

0.027

0.028

27.76

24.99

30.54

0.031

0.034

0.035

0.038

0.039

0.043

172.9

164.7

155.4

8.5

0.028

0.030

24.18

21.77

26.60

0.033

0.037

0.038

0.041

0.042

0.046

150.3

142.8

135.2

9.6

0.030

0.032

21.25

19.13

23.38

0.035

0.039

0.040

0.043

0.044

0.048

132.6

126.4

120.2

10.8

0.032

0.034

18.83

17.00

20.65

0.037

0.041

0.042

0.046

0.047

0.051

117.8

112.1

106.3

12.0

0.034

0.036

16.79

15.17

18.42

0.040

0.044

0.045

0.049

0.050

0.054

104.4

99.57

94.69

13.2

0.036

0.038

15.07

13.61

16.54

0.042

0.046

0.047

0.051

0.052

0.056

93.97

89.87

85.72

14.5

0.038

0.040

13.60

12.28

14.92

0.044

0.049

0.050

0.054

0.055

0.059

84.68

80.81

77.25

15.9

0.040

0.043

11.77

10.63

12.91

0.047

0.052

0.053

0.058

0.059

0.063

73.55

70.15

67.01

18.0

0.043

0.045

10.75

9.71

11.79

0.050

0.055

0.056

0.061

0.062

0.067

66.82

63.85

60.85

19.4

0.045

0.048

9.447

8.596

10.297

0.053

0.059

0.060

0.065

0.066

0.070

58.73

56.08

53.81

21.7

0.048

0.050

8.706

7.922

9.489

0.055

0.060

0.061

0.066

0.067

0.072

54.42

52.26

50.08

23.2

0.050

0.053

7.748

7.051

8.446

0.058

0.064

0.065

0.070

0.071

0.076

48.42

46.45

44.62

25.3

0.053

0.056

6.940

6.316

7.565

0.062

0.067

0.068

0.074

0.075

0.080

43.36

41.69

40.01

28.0

0.056

0.060		6.046	5.562	6.529	0.066	0.072	0.073	0.079	0.080	0.085	37.79	36.33	34.97	31.7	0.060
0.063		5.484	5.045	5.922	0.069	0.076	0.077	0.083	0.084	0.089	34.27	32.92	31.74	34.6	0.063
0.067	± 0.003	4.849	4.404	5.360	0.074	0.080	0.081	0.088	0.089	0.093	30.31	29.19	28.21	37	0.067
0.070	± 0.003	4.442	4.050	4.890	0.077	0.083	0.084	0.090	0.091	0.096	27.83	26.91	26.06	41	0.070
0.071	± 0.003	4.318	3.941	4.748	0.078	0.084	0.085	0.091	0.092	0.097	27.07	26.19	25.37	44	0.071
0.075	± 0.003	3.869	3.547	4.235	0.082	0.089	0.090	0.095	0.096	0.102	24.26	23.52	22.82	46	0.075
0.080	± 0.003	3.401	3.133	3.703	0.087	0.094	0.095	0.101	0.102	0.108	21.39	20.73	20.11	52	0.080
0.085	± 0.003	3.012	2.787	3.265	0.093	0.100	0.101	0.107	0.108	0.114	18.92	18.37	17.86	57	0.085
0.090	± 0.003	2.687	2.495	2.900	0.098	0.105	0.106	0.113	0.114	0.120	16.92	16.43	15.96	63	0.090
0.095	± 0.003	2.412	2.247	2.594	0.103	0.111	0.112	0.119	0.120	0.126	15.19	14.75	14.35	69	0.095
0.100	± 0.003	2.177	2.034	2.333	0.108	0.117	0.118	0.125	0.126	0.132	13.72	13.31	12.97	75	0.100
0.106	± 0.003	1.937	1.816	2.069	0.115	0.123	0.124	0.132	0.133	0.140	12.22	11.88	11.56	81	0.106
0.110	± 0.003	1.799	1.690	1.917	0.119	0.128	0.129	0.137	0.138	0.145	11.34	11.03	10.74	88	0.110
0.112	± 0.003	1.735	1.632	1.848	0.121	0.130	0.131	0.139	0.140	0.147	10.95	10.65	10.37	94	0.112
0.118	± 0.003	1.563	1.474	1.660	0.128	0.136	0.137	0.145	0.146	0.154	9.870	9.626	9.379	97	0.118
0.120	± 0.003	1.511	1.426	1.604	0.130	0.138	0.139	0.148	0.149	0.157	9.550	9.305	9.057	102	0.120
0.125	± 0.003	1.393	1.317	1.475	0.135	0.144	0.145	0.154	0.155	0.163	8.803	8.575	8.356	110	0.125
0.130	± 0.003	1.288	1.220	1.361	0.141	0.150	0.151	0.160	0.161	0.169	8.131	7.928	7.733	118	0.130
0.132	± 0.003	1.249	1.184	1.319	0.143	0.152	0.153	0.162	0.163	0.171	7.891	7.697	7.511	125	0.132
0.140	± 0.003	1.110	1.055	1.170	0.151	0.160	0.161	0.171	0.172	0.181	7.030	6.860	6.687	133	0.140
0.150	± 0.003	0.9673	0.9219	1.0159	0.162	0.171	0.172	0.182	0.183	0.193	6.125	5.987	5.840	150	0.150
0.160	± 0.003	0.8502	0.8122	0.8906	0.172	0.182	0.183	0.194	0.195	0.205	5.390	5.265	5.139	169	0.160
0.170	± 0.003	0.7531	0.7211	0.7871	0.183	0.194	0.195	0.205	0.206	0.217	4.771	4.667	4.561	186	0.170
0.180	± 0.003	0.6718	0.6444	0.7007	0.193	0.204	0.205	0.217	0.218	0.229	4.263	4.168	4.072	206	0.180
0.190	± 0.003	0.6029	0.5794	0.6278	0.204	0.216	0.217	0.228	0.229	0.240	3.823	3.743	3.664	226	0.190
0.200	± 0.003	0.5441	0.5237	0.5657	0.214	0.226	0.227	0.239	0.240	0.252	3.456	3.384	3.312	247	0.200
0.212	± 0.003	0.4843	0.4669	0.5026	0.227	0.240	0.241	0.254	0.255	0.268	3.075	3.010	2.944	250	0.212
0.224	± 0.003	0.4338	0.4188	0.4495	0.239	0.252	0.253	0.266	0.267	0.280	2.759	2.704	2.648	256	0.224
0.236	± 0.004	0.3908	0.3747	0.4079	0.253	0.267	0.268	0.283	0.284	0.298	2.481	2.429	2.376	260	0.236
0.250	± 0.004	0.3482	0.3345	0.3628	0.267	0.281	0.282	0.297	0.298	0.312	2.215	2.171	2.127	366	0.250
0.265	± 0.004	0.3099	0.2982	0.3223	0.283	0.297	0.298	0.314	0.315	0.330	1.972	1.934	1.895	392	0.265
0.280	± 0.004	0.2776	0.2676	0.2882	0.298	0.312	0.313	0.329	0.330	0.345	1.769	1.737	1.704	448	0.280
0.300	± 0.004	0.2418	0.2335	0.2506	0.319	0.334	0.335	0.352	0.353	0.369	1.542	1.514	1.485	507	0.300
0.315	± 0.004	0.2193	0.2121	0.2270	0.334	0.349	0.350	0.367	0.368	0.384	1.400	1.376	1.351	562	0.315
0.335	± 0.004	0.1939	0.1878	0.2004	0.355	0.372	0.373	0.391	0.392	0.408	1.238	1.216	1.195	633	0.335
0.355	± 0.004	0.1727	0.1674	0.1782	0.375	0.392	0.393	0.411	0.412	0.428	1.104	1.086	1.068	720	0.355
0.375	± 0.005	0.1548	0.1494	0.1604	0.396	0.414	0.415	0.434	0.435	0.453	0.989	0.973	0.957	791	0.375
0.400	± 0.005	0.1360	0.1316	0.1407	0.421	0.439	0.440	0.459	0.460	0.478	0.871	0.858	0.844	854	0.400

Conductor		Min.Film Thickness (mm)	Max.O.D. (MM)	Copper		Copper-clad Aluminum
Dia (mm)	Tolerance (mm)	Min.Film Thickness (mm)	Max.O.D. (MM)	Max. Conductor Resistance (Ω/km,20℃)	Approx. Weight (kg/km)	Std.Conductor Resistance (Ω/km,20℃)	Approx. Weight (kg/km)
0.02	±0.002	0.003	0.03	69850	0.0028
0.025	"	"	0.037	42780	0.0049
0.03	"	"	0.044	28870	0.007
0.04	"	"	0.056	15670	0.012
0.05	±0.003	0.004	0.069	10240	0.02
0.06	"	"	0.081	6966	0.027	9040	0.013
0.07	"	"	0.091	4990	0.036	6630	0.017
0.08	"	0.005	0.103	3778	0.048	5080	0.022
0.09	"	"	0.113	2959	0.06	4020	0.028
0.1	"	"	0.125	2381	0.074	3250	0.034
0.11	"	"	0.135	1957	0.089	2690	0.041
0.12	"	0.006	0.147	1636	0.11	2260	0.049
0.13	"	"	0.157	1389	0.12	1920	0.057
0.14	"	"	0.167	1193	0.14	1660	0.066
0.15	"	"	0.177	1037	0.16	1440	0.075
0.16	"	0.007	0.189	908.8	0.19	1270	0.086
0.17	"	"	0.199	803.2	0.21	1120	0.096
0.18	"	0.008	0.211	715	0.24	1000	0.1
0.19	"	"	0.221	640.6	0.26	900	0.12
0.2	"	"	0.231	577.2	0.29	812	0.13
0.21	"	"	0.241	522.8	0.32	737	0.15
0.22	±0.004	"	0.252	480.1	0.35	672	0.16
0.23	"	0.009	0.264	438.6	0.38	613	0.17
0.24	"	"	0.274	402.2	0.42	564	0.19
0.25	"	"	0.284	370.2	0.45	520	0.2
0.26	"	"	0.294	341.8	0.49	482	0.22
0.27	"	"	0.304	316.6	0.52	446	0.24
0.28	"	"	0.314	294.1	0.57	415	0.25
0.29	"	"	0.324	273.9	0.6	387	0.27
0.3	±0.005	0.01	0.337	254	0.65	361	0.29
0.32	"	"	0.357	222.8	0.73	318	0.33
0.35	"	"	0.387	185.7	0.88	265	0.39
0.37	"	"	0.407	165.9	0.98	238	0.44
0.4	"	0.011	0.439	141.7	1.14
0.45	±0.006	"	0.49	112.1	1.44
0.5	"	0.012	0.542	89.95	1.78
0.55	"	"	0.592	74.18	2.15
0.6	±0.008	"	0.644	62.64	2.56
0.65	"	"	0.694	53.26	3
0.7	"	0.013	0.746	45.84	3.47
0.75	"	0.014	0.798	39.87	3.99
0.8	±0.010	0.015	0.852	35.17	4.54
0.85	"	"	0.904	31.11	5.12
0.9	"	0.016	0.956	27.71	5.74

标称线径	电阻系数	实际值	概算重量
mm	ohm/Km	mm	Kg / Km
0.025	38600	0.035	0.0049
0.030	26800	0.041	0.0070
0.035	19690	0.046	0.0089
0.040	15080	0.052	0.0124
0.045	11910	0.058	0.0157
0.050	9650	0.064	0.0191
0.055	7970	0.07	0.0230
0.060	6700	0.075	0.0275
0.065	5710	0.081	0.0310
0.070	4920	0.086	0.0372



SDHT	2DS-FH(5)	DAIKOKU

标称线径	电阻系数	平均值	概算重量
mm	ohm/Km	mm	Kg / Km
0.025	34820	0.032	0.0049
0.030	24180	0.039	0.0070
0.036	16790	0.047	0.0089
0.040	13600	0.052	0.0124
0.045	10750	0.058	0.0157
0.050	8706	0.063	0.0191
0.053	7748	0.068	0.0215
0.056	6940	0.071	0.0240
0.060	6046	0.076	0.0275
0.063	5484	0.080	0.0304
0.067	4849	0.085	0.0343
0.070	4442	0.087	0.0372


ELEKTRISOLA	SP180

漆包线类型	漆包线规格(mm)	最大线材外径(mm)	最大电阻率(Ω/km)	重量(kg/km)
CCAW	0.06	0.082	9040	0.013
CCAW	0.07	0.092	6630	0.017
CCAW	0.08	0.108	5080	0.022
CCAW	0.09	0.118	4020	0.028
CCAW	0.1	0.128	3250	0.034
CCAW	0.11	0.138	2690	0.041
CCAW	0.12	0.152	2260	0.049
CCAW	0.13	0.162	1920	0.057
CCAW	0.14	0.172	1660	0.066
CCAW	0.15	0.182	1440	0.075
CCAW	0.16	0.194	1270	0.086
CCAW	0.17	0.204	1120	0.096
CCAW	0.18	0.216	1000	0.1
CCAW	0.19	0.228	900	0.12
CCAW	0.2	0.238	812	0.13
CCAW	0.21	0.248	737	0.15
CCAW	0.22	0.258	672	0.16
CCAW	0.23	0.272	613	0.17
CCAW	0.24	0.282	564	0.19
CCAW	0.25	0.292	520	0.2
CCAW	0.26	0.305	482	0.22
CCAW	0.27	0.315	446	0.24
CCAW	0.28	0.325	415	0.25
CCAW	0.29	0.335	387	0.27
CCAW	0.3	0.345	361	0.29
CCAW	0.32	0.369	318	0.33
CCAW	0.35	0.399	265	0.39
CCAW	0.37	0.42	238	0.44

漆包线类型	漆包线规格(mm)	最大线材外径(mm)	最大电阻率(Ω/km)	重量(kg/km)
CW	0.02	0.03	69850	0.0028
CW	0.025	0.037	42780	0.0049
CW	0.03	0.044	28870	0.007
CW	0.04	0.056	15670	0.012
CW	0.05	0.069	10240	0.02
CW	0.06	0.081	6966	0.027
CW	0.07	0.091	4990	0.036
CW	0.08	0.103	3778	0.048
CW	0.09	0.113	2959	0.06
CW	0.1	0.125	2381	0.074
CW	0.11	0.135	1957	0.089
CW	0.12	0.147	1636	0.11
CW	0.13	0.157	1389	0.12
CW	0.14	0.167	1193	0.14
CW	0.15	0.177	1037	0.16
CW	0.16	0.189	908.8	0.19
CW	0.17	0.199	803.2	0.21
CW	0.18	0.211	715	0.24
CW	0.19	0.221	640.6	0.26
CW	0.2	0.231	577.2	0.29
CW	0.21	0.241	522.8	0.32
CW	0.22	0.252	480.1	0.35
CW	0.23	0.264	438.6	0.38
CW	0.24	0.274	402.2	0.42
CW	0.25	0.284	370.2	0.45
CW	0.26	0.294	341.8	0.49
CW	0.27	0.304	316.6	0.52
CW	0.28	0.314	294.1	0.57
CW	0.29	0.324	273.9	0.6
CW	0.3	0.337	254	0.65
CW	0.32	0.357	222.8	0.73
CW	0.35	0.387	185.7	0.88
CW	0.37	0.407	165.9	0.98
CW	0.4	0.439	141.7	1.14
CW	0.45	0.49	112.1	1.44
CW	0.5	0.542	89.95	1.78
CW	0.55	0.592	74.18	2.15
CW	0.6	0.644	62.64	2.56
CW	0.65	0.694	53.26	3
CW	0.7	0.746	45.84	3.47
CW	0.75	0.798	39.87	3.99
CW	0.8	0.852	35.17	4.54
CW	0.85	0.904	31.11	5.12
CW	0.9	0.956	27.71	5.74

不同类型的线需要不同的烘烤温度:

此主题相关图片如下：

每个厂家宣传不一样.

资料来源于各厂家,真实性自行判断!

线材种类繁多.

对功率有要求的,要特别考虑其耐温性能和耐张力!

主题：音圈线材性能一览
