标题：关于压缩高音头的等效电路模型
1楼
mack 发表于：2008-11-21 14:23:20做专业单元的大佬们有没有搞过?
2楼
玛田音箱 发表于：2008-11-22 10:50:48看来mack最近在忙压缩高音头，连磁路模拟都是压缩式音头。赞一个。
3楼
mack 发表于：2008-11-24 14:57:20但是没有成绩出来啊,惭愧
4楼
钟灵 发表于：2008-12-4 14:11:13要学习一下!
5楼
钟灵 发表于：2008-12-4 14:18:32
6楼
钟灵 发表于：2008-12-4 14:23:50W. Marshall Leach, Jr., received B.S. and M.S. degrees
in electrical engineering from the University of South
Carolina, Columbia, in 1962 and 1964, and a Ph.D. degree in
electrical engineering from the Georgia Institute of
Technology, Atlanta, in 1972.
In 1964 he worked at NASA in Hampton, Virginia. From 1965 to 1968 he served as an officer in the U.S. Air Force.
Since 1972 he has been a faculty member at the Georgia
Institute of Technology where he is presently associate
professor of electrical engineering. His interests are applied
electromagnetics, audio and electroacoustics. and electronic
circuit design.
Dr. Leach is a member of the IEEE, the Audio Engineering
Society, Sigma Xi, Tau Beta Pi, Eta Kappa No, Omicron Delta
Kappa, and Phi Beta Kappa.
Sample article of "Acoustic Bibliography" on www.shackman.reromanus.net
More Speaker know-how on www.shackman.reromanus.net
in electrical engineering from the University of South
Carolina, Columbia, in 1962 and 1964, and a Ph.D. degree in
electrical engineering from the Georgia Institute of
Technology, Atlanta, in 1972.
In 1964 he worked at NASA in Hampton, Virginia. From 1965 to 1968 he served as an officer in the U.S. Air Force.
Since 1972 he has been a faculty member at the Georgia
Institute of Technology where he is presently associate
professor of electrical engineering. His interests are applied
electromagnetics, audio and electroacoustics. and electronic
circuit design.
Dr. Leach is a member of the IEEE, the Audio Engineering
Society, Sigma Xi, Tau Beta Pi, Eta Kappa No, Omicron Delta
Kappa, and Phi Beta Kappa.
Sample article of "Acoustic Bibliography" on www.shackman.reromanus.net
More Speaker know-how on www.shackman.reromanus.net
7楼
钟灵 发表于：2008-12-4 14:24:49可以参照看看.

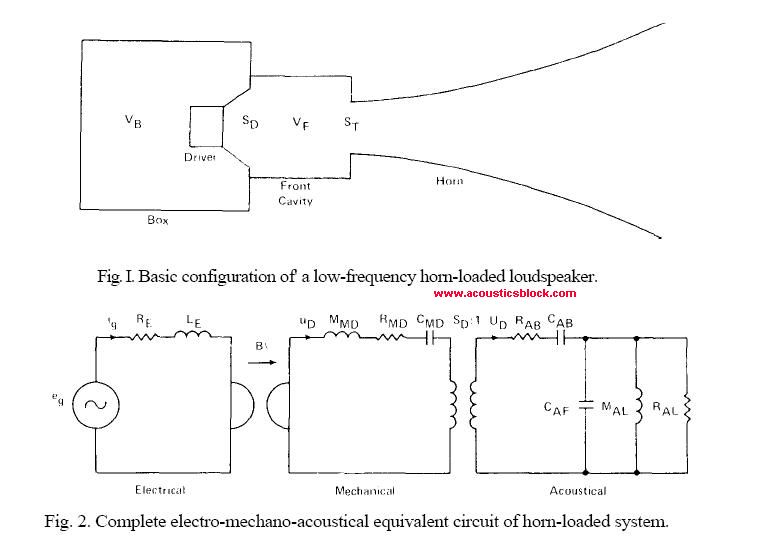

论文讲的是前加载号筒的等效电路.
论文讲的是前加载号筒的等效电路.
8楼
玛田音箱 发表于：2009-1-7 20:57:32以下是引用mack在2008-11-24 14:57:20的发言：
但是没有成绩出来啊,惭愧
但是没有成绩出来啊,惭愧
慢慢来吗，不要急。
9楼
玛田音箱 发表于：2009-1-7 20:58:13自己恭喜自己500贴
10楼

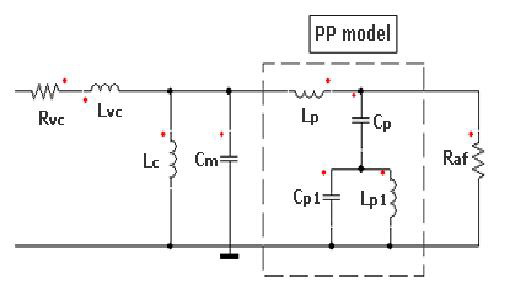

mack 发表于：2009-1-15 21:58:03此主题相关图片如下：压缩高音头等效电路图.jpg
- Cp capacitor representing phase plug – diaphragm air mass (Cp =ρoSdld2/3(Bl)2h)
- Lp inductor representing phase plug – diaphragm air compliance (Lp =(Bl)2h/ρoc2Sd)
- Cp1 capacitor representing phase plug – diaphragm air mass closed to the slot (≈ 1,5Cp)
- Lp1 inductor representing phase plug – diaphragm air compliance near to the slot (≈0,099Lp)
- Raf horn radiation resistance (Raf = (Bl)2ST/ρocSd2)
- Rvc voice coil resistance
- Lvc voice coil inductance
- Cm capacitor representing total diaphragm mass (Cm = MT/(Bl)2)
- Lc inductor representing suspension compliance (Lc = (Bl)2CT)
- ld maximum sound path length between two adjacent slots
- MT diaphragm mass
- B magnetic induction
- l voice coil length
- Sd diaphragm surface
- h diaphragm – phase plug distance
- ST slot open area at diaphragm side
- c sound velocity
- ρo air density
11楼
玛田音箱 发表于：2009-1-29 18:35:53高音头的设计，主要在于几何设计跟工艺连接。
12楼
COLIN5 发表于：2009-10-17 9:18:51以下是引用玛田音箱在2009-01-29 18:35:53的发言：
高音头的设计，主要在于几何设计跟工艺连接。
高音头的设计，主要在于几何设计跟工艺连接。
说对一半
13楼
玛田音箱 发表于：2009-10-17 9:20:21那你说下一半
